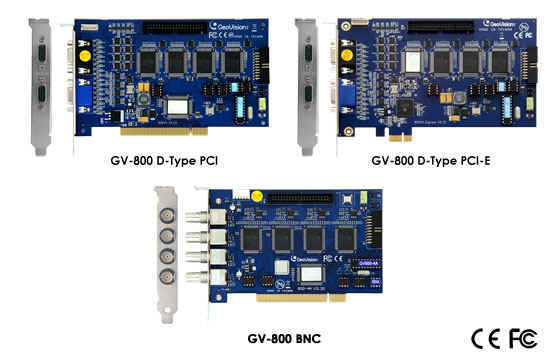

| GV-800
Video Capture Card |
|
|
|
Specifications
|
|
Input
Type
|
GV-800
BNC: BNC X 4
|
|
GV-800
D-Type: DB15 X 2
|
|
Video
Input(s)
|
4,
8, 12, 16 Cams
|
|
Audio
Input(s)
|
4
Channels
|
|
Total
Recording Rate
At 320 X 240 Resolution
|
120
fps (NTSC), 100 fps (PAL)
|
|
Display
Rate
|
120
fps (NTSC), 100 fps (PAL).
|
|
Video
Resolution - NTSC/PAL
|
Full
D1, Half D1, CIF
|
|
Compression
Format
|
Geo
MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264
V2
|
|
GV-A16
Support
|
Yes
|
|
GV-NET
Card Support
|
Yes
|
|
GV-NET/IO
Card Support
|
Yes
|
|
Dimensions
(W x H)
|
GV-800
BNC: 152 x 94 ( mm) / 5.98 x 3.70 (in)
|
|
GV-800
D-Type: 174 x 98 ( mm) / 6.85 x 3.86 (in)
|
|
Installation
Guide
|
D-Type
(PCI-E)
Installing
Two cards
|
|
Note:
GV-800 is currently not compatible with
VIA series and ATI series chipset
motherboards, and 64-bit Windows operating
system.
|
|
Minimum
System Requirements For One Card
|
|
OS
Supported
|
Windows
2000 / Windows XP / Windows Server 2003 /
Windows Vista
(Not support 64-bit
version of Windows)
|
|
CPU
|
Pentium
4-3.0 GHz with Hyper-threading
|
|
RAM
|
Windows
2000 / XP: 2 x 512 MB Dual Channels
Windows Vista / Server 2003: 2 x 1 GB Dual
Channels
|
|
HDD
|
80
GB
|
|
VGA
|
ATI
Radeon X600
NVIDIA 6200
|
|
DirectX
|
9.0c
|
|
Minimum
System Requirements For Two Cards
|
|
OS
Supported
|
Windows
2000 / Windows XP / Windows Server 2003 /
Windows Vista
(Not support 64-bit
version of Windows)
|
|
CPU
|
Pentium
4-3.0 GHz Dual Core
|
|
RAM
|
2
x 1 GB Dual Channels
|
|
HDD
|
160
GB
|
|
VGA
|
ATI
Radeon X1300 PCI-E
NVIDIA GeForce 7300 PCI-E
|
|
DirectX
|
9.0c
|
|

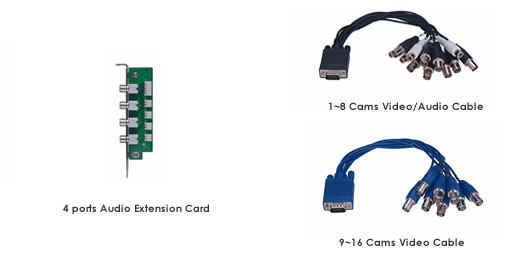

Accessories
|
|
|
