Specifications

Input Type

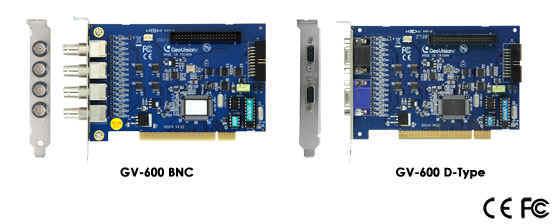

GV-600 BNC: BNC X 4

GV-600 D-Type: DB15 X 2

Video Input(s)

1, 2, 4, 6, 8, 10, 12, 14, 16 Cams

Audio Input(s)

1 Channel

Total Recording Rate
At 320 X 240 Resolution

30 fps (NTSC), 25 fps (PAL)

Display Rate

30 fps (NTSC), 25 fps (PAL)

Video Resolution - NTSC/PAL

Full D1, Half D1, CIF

Compression Format

Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2

GV-A16 Support

Yes

GV-NET Card Support

Yes

GV-NET/IO Card Support

Yes

Dimensions (W x H)



GV-600 BNC: 144 x 89 (mm) / 5.67 x 3.50 (in)

GV-600 D-Type: 144 x 89 (mm) / 5.67 x 3.50 (in)

Installation Guide

Installing Two cards

Note: GV-600 is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system.

Minimum System Requirements For One Card

OS Supported

Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)

CPU

Pentium 4-2.0 GHz

RAM

Windows 2000 / XP: 2 x 512 MB Dual Channels
Windows Vista / Server 2003: 2 x 1 GB Dual Channels

HDD

80 GB

VGA

ATI Radeon X600
NVIDIA 6200

DirectX

9.0c

Minimum System Requirements For Two Cards

OS Supported

Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)

CPU

Pentium 4-2.6 GHz with Hyper-threading

RAM

2 x 1 GB Dual Channels

HDD

160 GB

VGA

ATI Radeon X600
NVIDIA 6200

DirectX

9.0c

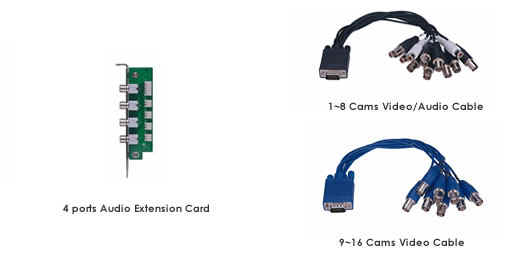

Accessories
