The

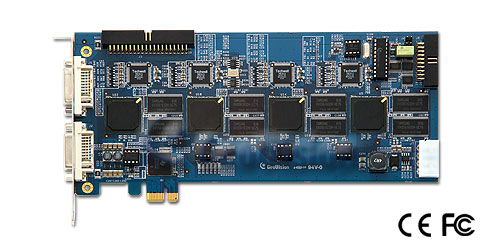

GV-4008 Card provides up to 8 video and 8 audio
channels, recording up to 240/200 fps (NTSC/PAL) in
total with H.264 hardware compression. The new
technology of resolution is employed to enhance the
live image of D1 without DSP Overlay. Even in screen
divisions, the largest division can remain at the
high-quality D1 resolution.
|
|
Specifications
|
|
|
GV-4008
|
GV-4016
(GV-4008 x 2)
|
|
Input
Type
|
DVI
x 2
|
DVI
x 4
|
|
Video
Input(s)
|
8
Cams
|
16
Cams
|
|
Audio
Input(s)
|
8
Channels
|
16
Channels
|
|
Total
Recording Rate
HW: At 720 X 480 Resolution
SW: At 320 X 240 Resolution
|
240
fps (NTSC) / 200 fps (PAL)
|
480
fps (NTSC) / 400 fps (PAL)
|
|
Display
Rate
|
240
fps (NTSC) / 200 fps (PAL)
|
480
fps (NTSC) / 400 fps (PAL)
|
|
Video
Resolution
|
H/W
:
|
720
x 480 (NTSC) /
720 x 576 (PAL)
|
720
x 480 (NTSC) /
720 x 576 (PAL)
|
| S/W |
360
x 240 (NTSC) /
360 x 288 (PAL)
|
360
x 240 (NTSC) /
360 x 288 (PAL)
|
|
Compression
Format
|
S/W
:
|
Geo
MPEG4, Geo MPEG4(ASP), Geo H264, Geo H264 V2 |
|
H/W
|
H.264
|
|
GV-Net
I/O Card Support
|
Yes
|
|
GV-Multi
Quad Card Support
|
No
|
|
Hardware
Watchdog
|
Yes
|
|
Dimensions(W
x H)
|
169
x 110 (mm) / 6.65 x 4.33 (in)
|
|
Installation
Guide
|
GV-4008
/ GV-4016
|
|
Note:
1. GV-4008 is currently not compatible with
VIA series and ATI series chipset motherboards, and
64-bit Windows operating system.
2. To work together with GV-4008, GV-NET/IO Card
V3.1 must be set in the I/O Box Mode and connected
to the PC through USB.
3. GV-4008 does not support the TV-Out function.
|
|
Minimum
System Requirements For One Card (GV-4008)
|
|
OS
Supported
|
Windows
XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)
|
|
CPU
|
Core
2 Duo 2.33 G
|
|
RAM
|
2
x 1 GB Dual Channels
|
|
HDD
|
250
GB
|
|
VGA
|
ATI
Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E
|
|
DirectX
|
9.0c
|
|
Minimum
System Requirements For Two Card (GV-4016)
|
|
OS
Supported
|
Windows
XP / Windows Server 2003 / Windows Vista
(Not support 64-bit version of Windows)
|
|
CPU
|
Core
2 Quad 2.4 G
|
|
RAM
|
2
x 1 GB Dual Channels
|
|
HDD
|
500
GB
|
|
VGA
|
ATI
Radeon X1300 PCI-E
NVIDIA GeForce 7300 PCI-E
|
|
DirectX
|
9.0c
|
