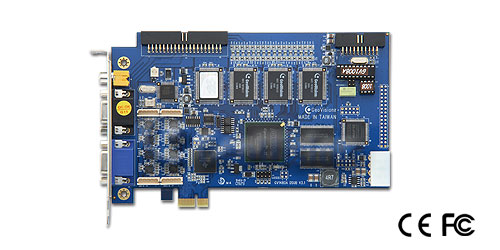

The GV-1008, as a three-in-one combo
card, provides one single card solution for 8 video/audio
recording, real-time display and TV-out display. This
Card can record 8 channels at D1 in real time. When
the two Cards are installed in the system, it can be
utilized to provide a single TV-out display of 16
cameras and maintain a high recording rate of 480 fps
at D1 resolution. |
Specifications
|
|
GV-1008
|
GV-1016
(GV-1008 x 2)
|
Interface
Type
|
PCI-E
|
Input
Type
|
DB15
x 1 (Video),
DB9 x 1 (Audio)
|
DB15
x 2 (Video),
DB9 x 2(Audio)
|
Video
Input(s)
|
8
Cams
|
16
Cams
|
Audio
Input(s)
|
8
Channels
|
16
Channels |
TV
Output
|
RCA
Connector x 1
|
Total
Recording Rate
|
CIF
|
240
fps (NTSC),
200 fps (PAL)
|
480
fps (NTSC),
400 fps (PAL)
|
D1
|
240
fps (NTSC),
200 fps (PAL)
|
480
fps (NTSC),
400 fps (PAL)
|
Display
Rate
|
CIF
|
240
fps (NTSC),
200 fps (PAL)
|
480
fps (NTSC),
400 fps (PAL)
|
D1
|
240
fps (NTSC),
200 fps (PAL)
|
480
fps (NTSC),
400 fps (PAL)
|
Video
Resolution
|
NTSC
|
720x480,
720x480 De-interlace, 640x480,
640x480 De-interlace, 360x240, 320x240
|
PAL
|
720x576,
720x576 De-interlace, 640x480,
640x480 De-interlace, 360x288, 320x240
|
Compression
Format
|
Geo
MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
|
GV-Multi
Quad Card Support
|
Yes
|
GV-Loop
Through Card Support
|
Yes
|
GV-NET/IO
Card Support
|
Yes
|
Dimensions
(W x H)
|
187.7
x 117.1 (mm) / 7.38 x 4.61 (in)
|
Installation
Guide
|
GV-1008
/ GV-1016
|
Note:
GV-1008 is currently not compatible with VIA
series and ATI series chipset motherboards, and 64-bit
Windows operating system.
|
Minimum
System Requirements For One Card (GV-1008)
|
OS
Supported
|
Windows
2000 / Windows XP / Windows Server 2003 / Windows
Vista (Not support 64-bit version of Windows)
|
CPU
|
Core
2 Duo-3.0 GHz
|
RAM
|
Windows
2000 / XP: 2 x 512 MB Dual Channels
Windows Vista / Server 2003: 2 x 1 GB Dual Channels
|
HDD
|
250
GB
|
VGA
|
ATI
Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E
|
DirectX
|
9.0c
|
Minimum
System Requirements For Two Cards (GV-1016)
|
OS
Supported
|
Windows
2000 / Windows XP / Windows Server 2003 / Windows
Vista (Not support 64-bit version of Windows)
|
CPU
|
Core
i5-750, 2.66GHz
|
RAM
|
2
x 1 GB Dual Channels
|
HDD
|
500
GB
|
VGA
|
ATI
Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E
|
DirectX
|
9.0c
|
