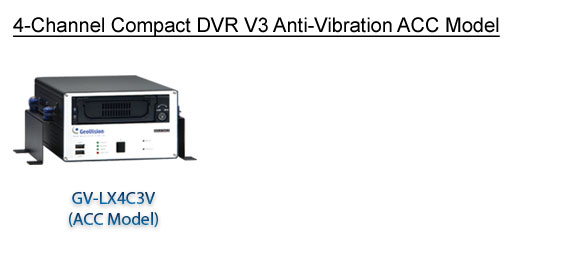

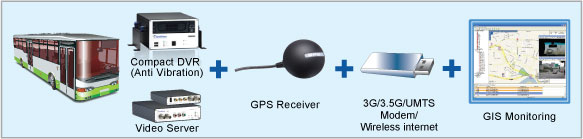

Datasheet INTRODUCTION The four-channel GV-Compact DVR V3 is a mobile video recorder, simultaneously displaying real-time images from four cameras.   The recording frame rate of each channel is adjustable up to 30 / 25 fps per channel at the resolution of 704 x 480 (NTSC) / 704 x 576 (PAL). The dual-stream design allows you to set up two different codec and resolutions for a single video transmission. In a limited bandwidth network, you can enable the dual streams to lower the resolution and codec for live images, but still get the highest recording quality and smallest file size compressed with H.264 codec.   The Anti-Vibration ACC model of the GV-Compact DVR V3 has already been tested to withstand severe levels of shock and vibration in mobile environments. It is perfect to be installed in any vehicles, such as buses and vans, for surveillance and recording.   The special design of the GV-Compact DVR V3 enables you to link up with TV, VGA and spot monitors simultaneously for direct display. The GV-Compact DVR V3 offers many features that you can expect to have.   Datasheet FEATURES Recording Dual streams from H.264 and MJPEG Up to 120 fps at D1 resolution Independent channel resolution, quality and frame rate settings Local Display VGA output in high resolution (1280 x 1024) Display video on TV, VGA and Spot Monitor simultaneously GPS Speed Text overlay on live view and recordings Storage and Backup 3.5” or 2.5” SATA HDD (3.5” to 2.5” HDD converter required) External USB mass storage devices DVD-RW Backup Backup Center for PC-based storage and backup solution Monitoring Continuous, motion detection, schedule and input-triggered recordings Buzzer alarm on video lost, input triggered, motion detected and disk full 4 alarm inputs and outputs Playback Retrieve video by date, time and event Remote playback Remote Monitoring Mobile broadband (HSDPA, UMTS, EDGE, EVDO, etc.) Mobile Phone Surveillance (Android Smartphone, iPhone, iPad) Central monitoring systems Center V2, VSM, Control Center, Recording Server Geographic information system GV-GIS GPS tracking for the Anti-Vibration ACC models (GPS module required) Language Support Support 16 languages on Web interface SPECIFICATIONS Model GV-LX4C3D1 GV-LX4C3D2 GV-LX4C3D2W GV-LX4C3V (ACC Model) Video Video Standard NTSC, PAL Video Input/Output 4 Videos In, 4 Loops Out Compression Dual streams from H.264 and MJPEG (H.264 for the main stream; MJPEG for the sub stream) Frame Rate NTSC 30 fps/ch at resolution of 704 x 480 PAL 25 fps/ch at resolution of 704 x 576 Video Resolution Main Stream NTSC 704 x 480, 704 x 480 De-interlace, 352 x 240 PAL 704 x 576, 704 x 576 De-interlace, 352 x 288 Sub Stream NTSC 352 x 240 PAL 352 x 288 Video Streaming Configurable frame rate and bandwidth Video Adjustment Brightness, Contrast, Hue, Saturation Audio Audio Input/Output 4 Audios In, 1 Audio Out Compression G.723 Output Signal Formats Resolution VGA Out 800 x 600, 1024 x 768, 1280 x 1024 TV Out 640 x 480 V. Frequency VGA Out 60 Hz TV Out 60 Hz Management Event Management Trigger Time, Sensor Input, Motion Detection Action Store video to HDD (AVI format) Send e-mails with captured images Upload captured images to FTP Server Monitor through Center V2, VSM and GV-GIS Activate relay outputs to control external devices Firmware Upgrade Remote upgrade by Web browser Use a USB flash drive Use the upgrade utility included on the Softwae CD Client PC Requirements Microsoft IE 7.x or above running on Windows XP / Vista / 7 / Server 2008 Language on Web Interface Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese Language on OSD English / French / German / Italian / Japanese / Portuguese / Russian / Simplified Chinese / Spanish / Traditional Chinese Network Interface 10/100 Base-T Ethernet 802.11b/g/n Wireless LAN (optional) Mobile broadband: UMTS, EDGE, etc. (optional) Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, Multicast, 3GPP/ISMA, RTSP, SNMP, QoS(DSCP) Security IP address filtering External Interface Audio / Video Input D-Type, DB 15 connector (4 Videos In, 4 Audios In) Audio / Video Output D-Type, DB 15 connector (1 TV Out, 1 Spot Out, 1 VGA Out, 1 Audio Out, 4 Video Loops Out) Sensor Input 4 inputs on terminal block Alarm Output 4 outputs on terminal block PTZ RS-485 +/- output on terminal block ACC Wire Connection None 1 output on terminal block GPS None 1 port (PS/2 connector) Ethernet RJ-45, 10/100 Mbps USB 2 ports (USB 2.0) IR Receiver 1 port for optional External IR Receiver Power 12V, 5A (60W Max.) 10 ~ 28V, 5A (60W Max.) Alarm Sensor Input 4 digital inputs Alarm Output 4 relay outputs Environment Operation Temp. -20 ~ 50 ° C / 4 ~ 122 ° F Humidity 5 ~ 85% RH (non-condensing) Physical Dimensions (L x W x H) 176 x 244 x 86 mm / 7 x 9.6 x 3.4 inch 176 x 244 x 130 mm / 7 x 9.6 x 5.1 inch 176 x 244 x 130 mm / 7 x 9.6 x 5.1 inch 176 x 253 x 105 mm / 7 x 10 x 4.1 inch Weight 2.3 Kg / 5 lb 3.2 Kg / 7 lb 3.3 Kg / 7.3 lb 2.9 Kg / 6.4 lb HDD Drive Bay 1 bay 2 bays 1 bay 1 bay DVD-RW Drive None 1 drive None Reliability Operating Shock - 10G, 2 ms Operating Vibration - 5 ~ 500 Hz, 1G Optional Storage SATA HDD of 2.5" or 3.5" 1 SATA HDD 2 SATA HDDs 1 SATA HDD 1 SATA HDD USB HDDs 2 external USB HDDs DVD-RW backup DVD-RW backup DVD-RW backup N/A (already equipped) DVD-RW backup Note: Currently, all standard models do not support the GPS reciever (RS-232 inteface) and GPS function. An HDD converter is required from GeoVision for 2.5" HDD. The frame rate of sub stream for live view will be affected by the number of connections and recording. However, the frame rate of main stream for recording is unaffected. All specifications are subject to change without notice. Options Optional devices can expand your GV-Compact DVR's capabilities and versatility. Contact your dealer for more information. External IR Receiver The external IR receiver, with a 5-meter cable (16.4 feet), allows long-distance remote control of the GV-Compact DVR V3. GV-GPS 232 Receiver with PS/2 Connector GV-GPS 232 Receiver, with RS-232 interface, is a Global Position System receiver. It can be applied to vehicle tracking and location verification. The device is designed for Anti-Vibration ACC models only. 2.5" to 3.5" HDD Converter The HDD converter allows you to install a 2.5" SATA HDD into GV-Compact DVR. GV-Relay V2 Working with the GV-Relay V2, GV-Compact DVR V3 can expand the voltage load up to 10A 250V AC / 10A 125V AC / 5A 100V DC. WiFi USB Adaptor The WiFi USB Adaptor is designed to connect the GV IP devices, such as GV-Video Servers or GV-Compact DVRs, to the wireless network. This product complies with IEEE 802.11 b/g/n (Draft 3.0) standards for wireless networking. Power Adaptor of DC 12V, 5.0A The power adaptor is used to power on the Anti-Vibration ACC model to test the connection. This device is designed for Anti-Vibration ACC models only. Supported Wireless LAN USB Adaptor Vendors Model D‐Link DWA-140 (H/W version B1), DWL-G122 (version C1) EDIMAX EW-7318Ug, EW-7718Un Linksys WUSB54GC, WUSB600 (version 1) Pegatron WL-166N11 Note: Linksys WUSB54GC ver. 3 is not supported. Supported Mobile Broadband Device Vendors Model HUAWEI EC169C, E169, E220, E1692, E1750, E1752 and E1756USB Modem (HSDPA/UMTS/EDGE/GPRS/GSM) Novatel MC950D and MC996D (HSDPA/UMTS/EDGE/GPRS/GSM) ONDA MSA523HS Verizon USB760 Modem (EVDO) Vodafone K3565 (Rev 2)      Voltar
