Providing detail not seen on conventional surveillance
cameras, the GV-IP Camera 1.3M features a 1.3 megapixel CCD
that delivers superb video image quality. Through the use of
progressive scan CCD sensor, the GV-IP Camera 1.3M is able
to reproduce ultra smooth video images of fast moving
objects without any pixilated edges. With high definition up
to 1280 x 960 and up to 4 times higher resolution than
conventional VGA/ D1 cameras, the GV-IP Camera 1.3M allows
users to monitor critical areas with greater detail than
ever. Moreover, with simultaneous/dual video stream and
support for compliant Power-over-Ethernet (PoE) which
simplifies the cabling. It allows users to view both MJPEG
images and MPEG-4 videos with improved efficiency while
conserving valuable bandwidth.
In providing our customers with a more complete,
cost-effective IP surveillance solution, our GV-IP Camera
1.3M can seamlessly integrate with our GV-NVR software
system that comes with advanced monitoring and various other
video management features. When connected with the GV-IP
Camera 1.3M, Special web interface support functions such as
privacy mask, visual automation, picture-in-picture (PiP)
view and picture-and-picture (PnP) view are also made
available for facilitating detail monitoring.
|
 |
- 1.3 megapixel SONY progressive scan CCD
- Dual streaming support MJPEG and MPEG4
- Two way audio
- Digital I/O: 1 IN, 1 OUT
- Support both 12V DC and PoE
- Video Motion Detection reduces bandwidth and storage
- 3GPP/ISMA mobile application
- Privacy Mask
- Visual Automation
|
|

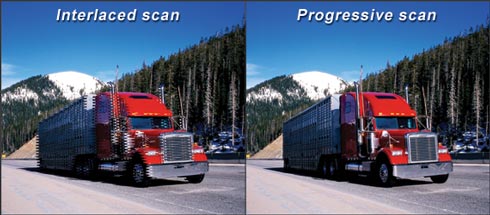

Progressive scan CCD captures the entire scene of a
moving object at the same time. Even and odd fields are
scanned simultaneously. It reproduces smooth video quality
without pixilated edges.
|
 |

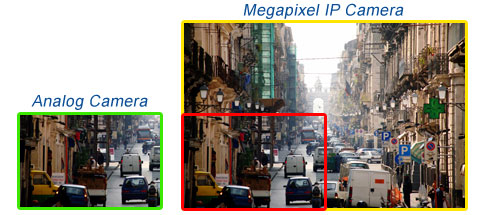

| It provides
up to 4 times higher resolution than common VGA/D1 cameras. |
 |
|
|
|
|
|
SPECIFICATIONS
|
Camera
|
|
Sensor
|
1/3"
SONY progressive scan CCD
|
|
Elements
|
1280(H)
x 960 (V), 1.3M CCD
|
|
Resolution
|
700
TVL
|
|
Minimum
Illumination
|
0.02
lux @ F1.2
|
|
Shutter
Speed
|
1.5
~ 1/10000 sec.
|
|
White
Balance
|
Manual
/ ATW (1500 ~ 15000K)
|
|
Lens
|
|
Max
Aperture
|
Wide
F1.4, Tele F2.9 |
| Lens
Focal |
f
= 3.3~12 mm
|
|
Angle
of View
|
Wide
end
|
Diagonal 125.7° /
Horizontal 89.8 ° |
|
Tele
end
|
Diagonal 29.9 ° /
Horizontal 23.9 ° |
|
Operation
|
|
Video
Codec
|
MPEG4
/ MJPEG
|
|
Video
Streaming
|
Simultaneous
MPEG4 and MJPEG video stream (dual stream)
Selectable single stream (MPEG4 or MJPEG)
|
|
Resolution
|
MPEG4
ASP: VGA, QVGA, CIF, QCIF
MJPEG: 1280x960(4 VGA), VGA, QVGA, CIF, QCIF
|
|
Frame
Rate
|
MPEG4
30fps@VGA
MJPEG 15fps@1280x960
|
|
Setting
|
Auto
Exposure, Auto White Balance, Brightness, Contrast,
Sharpness, Gamma, Mono, Reverse, Rotate 180°,
Flicker-less 50/60 Hz
|
|
Audio
Codec
|
G.726
|
|
Digital
Input
|
Dry
Contact
|
|
Digital
Output
|
relay output: 40mA, 5~12VDC
|
|
Network
|
|
Interface
|
10/100
Ethernet (RJ-45)
|
|
Protocol
|
HTTP,
TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS,
3GPP/ISMA RTSP
|
|
Power
over Ethernet
|
|
PoE
Standard
|
IEEE
802.3af Power over Ethernet / PSE
|
|
PoE
Power Supply Type
|
End-Span
|
|
PoE
Power Output
|
Per
Port 48V DC, 350mA. Max. 15.4 watts
|
|
Mechanical
|
|
Connectors
|
Power
|
DC
Jack
|
|
Ethernet
|
RJ-45
|
|
Audio
|
1
In, 1 Out stereo phone jack, pitch 3.5 mm / 0.14
in
|
|
Digital
I/O
|
4
pins terminal block, pitch 3.5 mm / 0.14 in
|
|
Auto
Iris
|
Video
drive & DC drive
|
|
LED
Indicator
|
Power,
Link, ACT
|
|
Mechanical
IR Cut Filter
|
Yes
|
|
General
|
|
Operating
Temperature
|
0°C
~ 50°C / 32 °F ~ 122 °F
|
| Humidity |
10%
to 90% (no condensation) |
|
Power
Source
|
DC12V
/ PoE
|
|
Power
Comsumption
|
4.2
W (max. 350mA DC 12V)
|
|
Certificate
|
CE,
FCC, RoHS compliant
|
|
Dimension
(L x W x H)
|
165
x 73 x 53 mm / 6.5 x 2.87 x 2.09 in
|
|
Weight
|
310g
/ 0.68 lb
|
|
Web
Interface
|
|
Installation
Management
|
Web-based
configuration
|
|
Maintenance
|
Firmware
upgrade through Web Browser
|
|
Access
from Web Browser
|
Camera
live view, video recording, change video quality,
zoom in/out, bandwidth control, image snapshot,
digital I/O control, audio, Picture in Picture,
Picture and Picture, Privacy Mask, Visual
Automation
|
|
Applications
|
|
Network
Storage
|
GV-NVR,
GV-System
|
|
3G
Mobile Phone
|
Built-in
player for 3GPP/ISMA
|
|
Live
Viewing
|
MultiView,
E-map, Mobile Phone
|
|
CMS
Server support
|
Control
Center, Center V2, VSM
|
|
| Options |
| Optional devices can expand your GV-IP Camera's
capabilities and versatility. Contact your dealer for more
information. |
| GV-Relay V2 |
Working with this module, GV-IP
Camera can drive the loads of relay outputs over
5V. |
|
|
|
|
|
|
